Danfoss VFD — Drive Engineering & Core Technology

Over 120 active patents across motor control algorithms, power electronics topology, and functional safety — translating laboratory innovation into field-proven industrial performance.

Motor Control Platform

Advanced Sensorless Vector Control

Our proprietary sensorless vector control algorithm delivers full rated torque from 0.5Hz startup with 0.5% steady-state speed regulation accuracy — without requiring a shaft encoder. The automatic motor adaptation (AMA) procedure measures stator resistance, leakage inductance, and rotor time constant in under 60 seconds, eliminating manual tuning errors and reducing commissioning time by up to 70%.

For applications demanding the highest dynamic response — such as winders, extruders, and centrifuges — our closed-loop vector platform supports incremental and absolute encoders with position-synchronized output, achieving torque response times below 5ms across the full speed range.

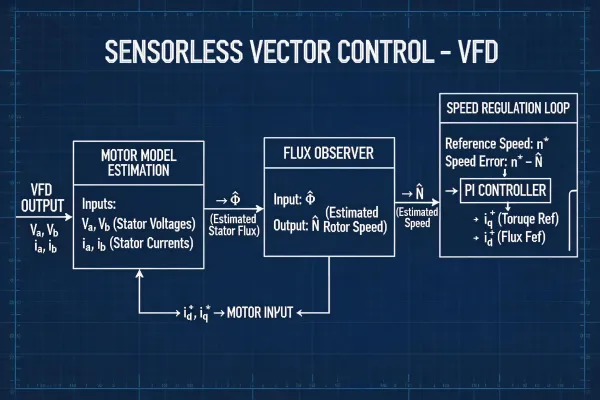

Sensorless vector control technology diagram

Power Quality

Active Harmonic Mitigation Technology

Standard 6-pulse VFD rectifiers inject harmonic currents into the supply network — increasing losses, overheating transformers, and tripping sensitive protection devices. Our multi-level active front end (AFE) technology uses IGBT-based active rectification to achieve total harmonic distortion below 3% THDi at full load, exceeding both IEEE 519-2022 and IEC 61000-3-12 compliance requirements without the need for passive harmonic filters.

For applications where regenerative braking energy would otherwise be dissipated as heat in braking resistors, the AFE topology returns regenerated energy to the supply network at unity power factor — reducing energy waste and eliminating the thermal management challenges associated with dynamic braking.

Parameter	Standard Drive	AFE Drive
THDi at Full Load	< 40%	< 3%
Input Power Factor	0.95	0.99
Regenerative Capability	No (braking resistor)	Yes (full 4-quadrant)
IEEE 519 Compliance	Requires external filter	Built-in compliant

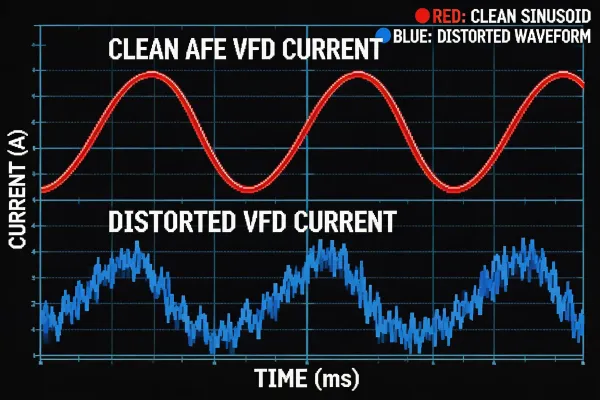

Active harmonic mitigation waveform comparison

Functional Safety

IEC 61800-5-2 Integrated Safety Functions

Machine safety design traditionally required external safety relays, dedicated wiring, and complex interlock logic between the drive and the machine safety circuit. Our integrated functional safety module eliminates this complexity by embedding SIL 3 / Performance Level e rated safety functions directly into the VFD firmware — certified by TÜV SÜD to IEC 61800-5-2 and IEC 62061.

Available safety functions include Safe Torque Off (STO), Safe Stop 1 (SS1), Safe Limited Speed (SLS), Safe Maximum Speed (SMS), and Safe Direction (SDI). All functions are configurable via the drive keypad or commissioning software — no separate safety PLC programming required for standard machine safety applications.

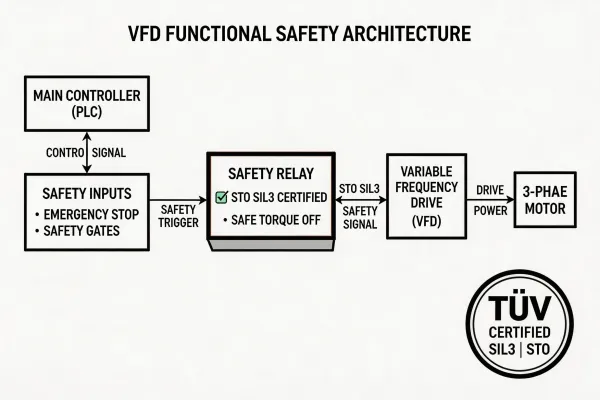

IEC 61800-5-2 functional safety architecture

Digital Integration

IIoT-Ready Multi-Protocol Architecture

Every Danfoss VFD drive ships with an integrated web server, real-time clock, and data logging capability as standard. Native fieldbus communication supports Modbus RTU/TCP, PROFINET RT, EtherNet/IP, and BACnet MS/TP — selectable via plug-in option cards without firmware changes.

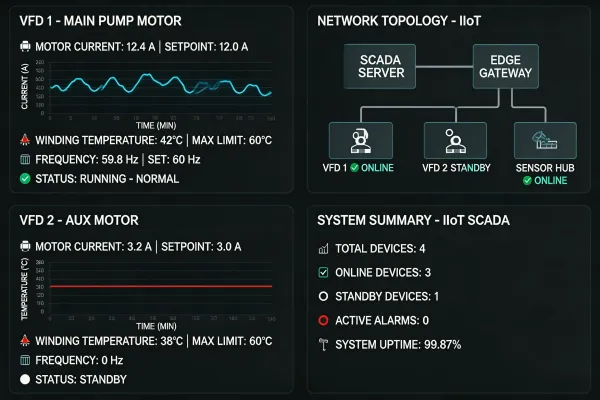

Our edge analytics firmware continuously monitors 50+ operating parameters — input voltage, output current, DC bus voltage, motor temperature, switching frequency, and power consumption — generating trend data and anomaly alerts that can be transmitted to SCADA platforms (Ignition, WinCC, FactoryTalk) or cloud-based asset management systems via MQTT or OPC UA protocols.

Protocol	Interface	Cycle Time
Modbus RTU	RS-485 (built-in)	10ms
Modbus TCP	RJ45 Ethernet	5ms
PROFINET RT	Option card	1ms
EtherNet/IP	Option card	2ms
BACnet MS/TP	Option card	50ms

Technical Documentation

Download datasheets, application notes, and white papers authored by our drive engineering team.

Product Catalog

Complete VFD range overview with selection tables and ordering codes

Technical Datasheet

Detailed specifications, derating curves, and dimensional drawings

Harmonic Analysis

White paper on AFE harmonic mitigation vs. passive filter solutions

Safety Manual

IEC 61800-5-2 safety function configuration and certification guide

Discuss Your Application with Our Engineers

Our application engineering team holds IEC 61800 design verification credentials. Submit your motor data and process parameters for a no-obligation drive recommendation.

Contact Technical Support
